Essential component for the JĘDREK pallet system

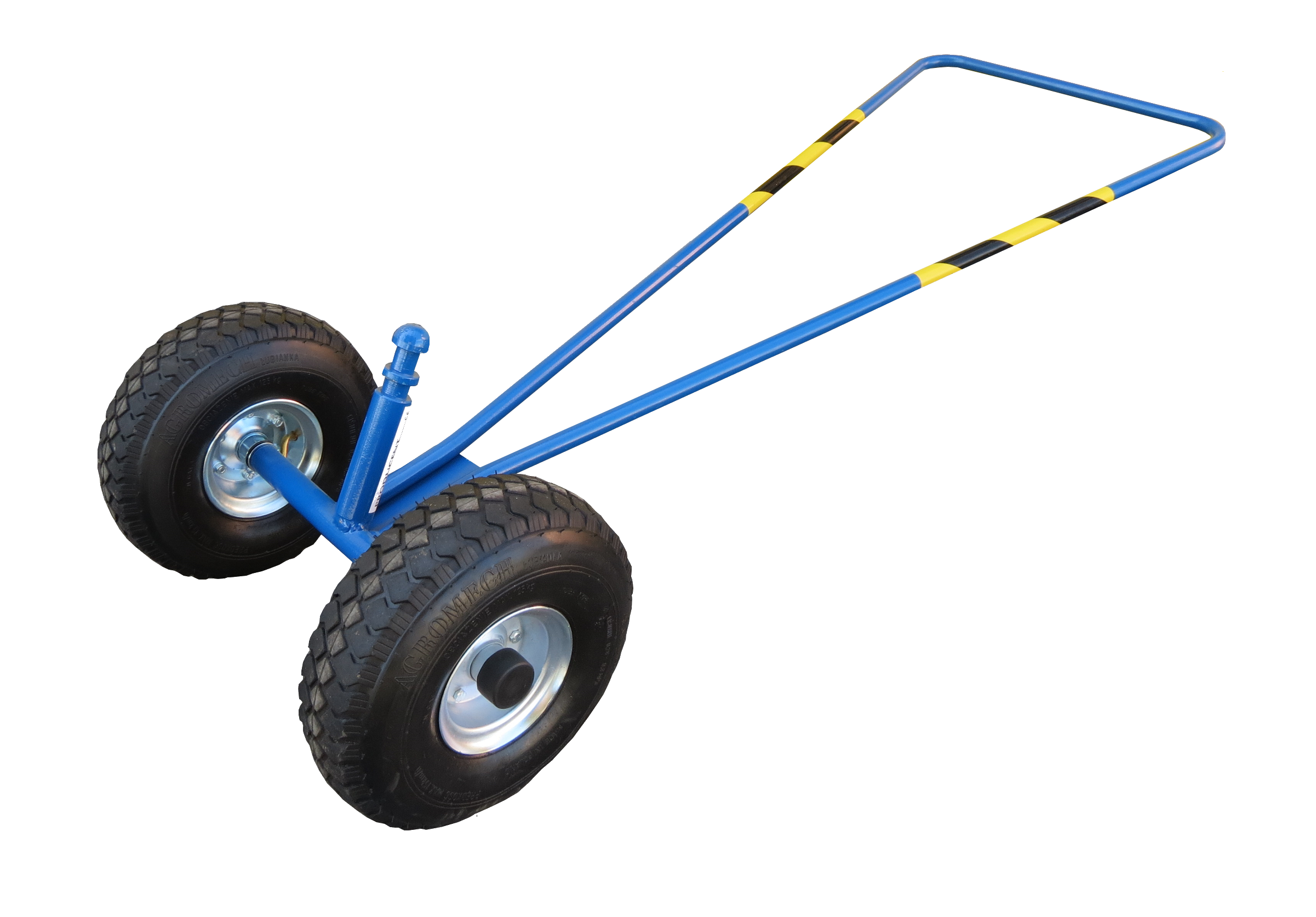

The JĘDREK ramp unit is the key wheeled component of the JĘDREK utility trolley range. It is this unit that gives JĘDREK pallets (1250 mm and 2000 mm) their mobility, converting them into fully functional two-wheeled utility trolleys.
At 1400 mm long and 510 mm wide, the ramp unit enables convenient transport of heavy and awkward loads, allowing the operator to negotiate thresholds and ramps with ease.
Fitted with two pneumatic wheels (4.00×4, Ø300 mm), it steers smoothly and lightly even at full load.
Technical specifications — JĘDREK Ramp Unit
| Parameter | Value |
|---|---|
| Model | Jędrek – podjazd (T-136/1) |
| SKU | T-136/1 |
| Overall length | 1400 mm |
| Overall width | 510 mm |
| Overall height | 350 mm |
| Load capacity | Not stated — verify with Agromech |
| Weight | 9 kg |
| Wheels | 2× pneumatic 4.00×4 (Ø300 mm) |
| Compatible pallets | JĘDREK 1250 mm, JĘDREK 2000 mm |
| Finish | Powder coated |
| Warranty | 24 months |
| Manufactured | 100% in Poland |
Key advantages
- Converts JĘDREK pallets into fully mobile two-wheeled utility trolleys
- Large pneumatic wheels handle thresholds, ramps, and uneven ground
- Lightweight at just 9 kg — easy to attach and detach
- Compatible with both standard (1250 mm) and extended (2000 mm) pallets
- Polish manufacture — spare parts always available
FAQ
Can the ramp unit be used without a pallet? No — it is designed exclusively to work together with a JĘDREK pallet.
Which pallet models are compatible? Both the standard pallet (1250 mm) and the extended pallet (2000 mm).
Is the ramp unit sold separately from the pallet? Yes — the ramp unit and pallets are sold as individual components, allowing replacement or combination to suit specific needs.
